In most cases, using a YOUXIN® Plastic machinery Plastic PPR pipe crusher at your disposal can save a significant amount of time and labor since you won't have to do as much manually crushing materials yourself. This makes them an invaluable asset for anyone who may need to crush materials quickly and efficiently.

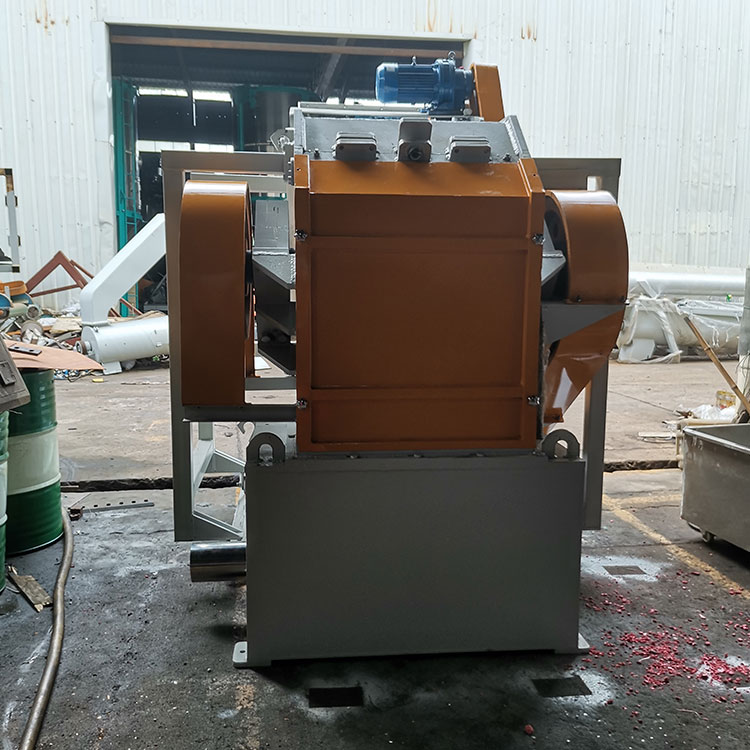

Plastic PPR Pipe Crusher is especially designed for small-dia. pipes and profiles, suitable for 16-400mm PE, PP, PVC,PPR pipes, wide door panels and sheets. For big crushing capacity, can be equipped with feeding conveyor, suction fan, storage bin and dust removal system.
| Plastic PPR Pipe Crusher | |
| Usage Method | Reduce Plastic pipe into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
| Screen mesh | 20mm |
◆ The crushing system is with wear resistant design to maximize the consistent running of the system and minimize operational costs.
◆ The crushing knife frame is with hollow flower-type design to feed fast, high and stable output,no block.
◆ Crusher screen is designed specifically for hard flake materials to create a uniform particle size which is easy for washing and drying.
◆The crusher bearing system adopts upper and lower split design, for convenient daily maintenance.
◆The crusher adopts a large-sized belt pulley to increase its shearing force.
Plastic PPR Pipe Crusher is mainly recycling crush Large diameter HDPE pipe, PP pipe, PE pipe, PPR pipe, PVC pipe, drainage pipe, water pipe, plastic pipe, big solid block of plastic, plastic purges, plastic lumps, etc. finally plastic scrap size is about 10-18mm, which can be directly used for injection and extruder machine.
01 Spindle Rotor
Spindle Rotor design can decentralize working load when granulating to increase cutting efficiency.
02 Hardness blades
The material of the blade is 9CrSi,the toughness is good,the wear-resistant,the blade is adjustable.
03 The motor of Plastic PPR Pipe Crusher
The motor adopts all copper wire motor,long life and durable.
04 Thickened screen
Customized high-quality and stable screen can be customized screen aperture.
05 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
06 Motor pulley and V-belt
The crusher adopts a large-sized belt pulley to increase its shearing force

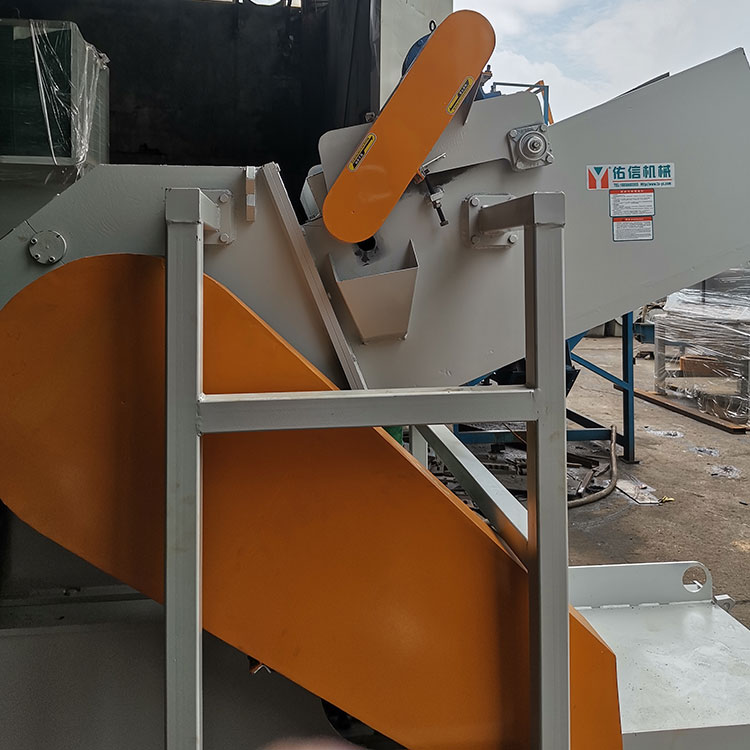

07 Force feeding system
Help to put the long pipe into the crusher.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Our crusher has many models. According to material size and discharge size.
Recommend different equipment models. Please contact us for details.
