YOUXIN® Plastic machinery have good quality Plastic Corrugated Pipe Crushers,which can be your good friends when you need to recycling waste corrugated pipes. The plastic crusher maybe is equal two or three hard-working employees in your factory. Looking forward to cooperate with you.

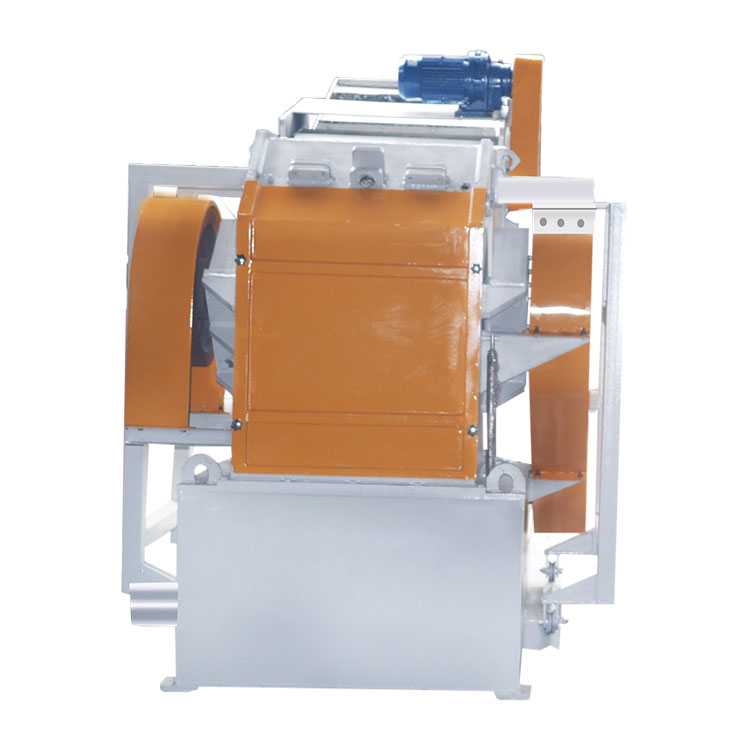

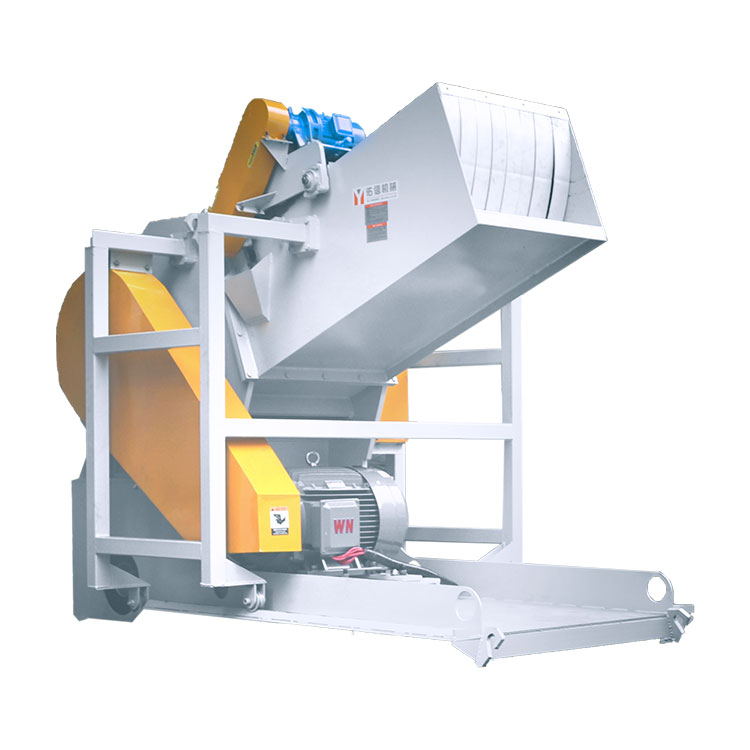

Plastic Corrugated Pipe Crusher is designed for grinding long plastic pipes and profiles. Overall heavy-duty steel welded cavity forms a fixed angle with the horizontal feeding hopper. The feeding hopper is almost parallel to the ground, is very convenient for feeding long materials. When too much solid waste fed into the crushing chamber, the rotor no longer accepts more material until the material in the crushing
| Plastic Corrugated Pipe Crusher | |
| Usage Method | Reduce Plastic pipe into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
| Screen mesh | 20mm |
1 TOUGH WELDED MACHINE BODY
YOUXIN Plastic crusher's body is made of special high strength welded steel to prevent shell cracking and excessive stress damage while running.
2 Force Feeding system
With forcible feeding design to avoid hollow bottle fly to improve the feeding efficiency and output.
3 Hydraulic system
The crusher is equipped with a one-button hydraulic tipping system, which drives the crushing hopper safe and quick open for and labor-saving crusher knife change and resharpen.
4 Crushing system
The crushing system is with wear resistant design to maximize the consistent running of the system and minimize operational costs.
Plastic Corrugated Pipe Crusher is mainly recycling crush Pipe material: large pipe, pipe fitting and PE pipe,corrugated pipe.
Suitable Raw Materials
1. All kinds of hollow containers: plastic beverage cans, plastic buckets,plastic drums, packing boxes,packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell
3. Pipe material: large pipe, pipe fitting and PE pipe,PPR pipe,Corrugated pipe.
01 Spindle Rotor
Use steel carburizing adjustment treatment, and more reasonably cooperates with the tool to provide powerful impetus for cutting.
02 High-quality blades
The plastic crusher blade is made of excellent material which has good sharpness and abrasion resistance.
03 Thickened screen
Customized high-quality and stable screen can be customized screen aperture.
04 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
05 Motor band wheel
Large diameter size belt wheel and weight wheel make the equipment run stable during the work process to ensure that the material is completely shattered.
06 Force feeding system
With forcible feeding design to avoid hollow bottle fly to improve the feeding efficiency and output.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Our crusher has many models. According to material size and discharge size.
Recommend different equipment models. Please contact us for details.
