With years of experience in production Waste Plastic Sheet Granulator,YOUXIN plastic machinery can supply a wide range of Waste Plastic Sheet Granulator. We welcome both new and old customers to continue partnering with us as we work towards creating a better future together.

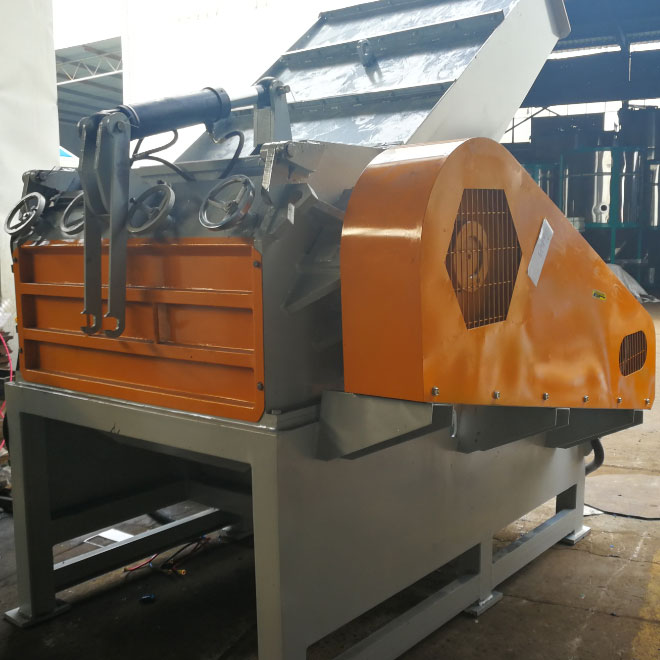

Waste Plastic Sheet Granulator adopts high hardness steel template, and is sturdy and durable. Shaft made of special material processing,not easily deformed.Cutter can be adjusted independently. and can be sharpened with repeated use.
| Waste Plastic Sheet Granulator | |
| Usage Method | Reduce Plastic sheet into small size |
| Motor Power | 90KW |
| The cover opening method | hydraulic |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 450mm |
| Shaft Length | 1200mm |
1. The operation is simple and convenient. It is suitable for large-scale shredding of plastics in industry.
2. The size of the crushed pieces can be customized according to the actual requirements of customers.
3. The spindle rotor can be customized according to different applications.
4. The Crushing chamber of crusher is processed by precision machine exactly with the strong welding structure.
5. Feeding hopper, main axis, and filter can be disassembled easily for cleaning.
6. The motor adopts all copper wire motor,long life and durable.
Waste Plastic Sheet Granulator is commonly used in crushing Industrial recycling waste plastic sheets. It can be used to crush and recycle all waste plastics, such as plastic sheers,plastic trays,plastic pallets,plastic profiles,plastic boxes,thin pipes, blow moulding parts, bottles, shells, household plastics, etc.
01 Spindle Rotor
All spindles have padded strict dynamic and static balance tests to ensure the reliability of machine operation.

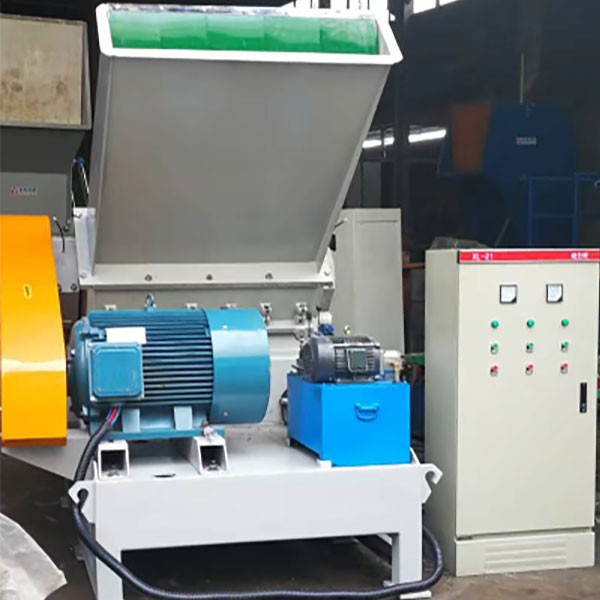

02 The bottom of Waste Plastic Sheet Granulator
The motor adopts all copper wire motor,long life and durable.
03 Thickened screen
A wide range of screens available to adjust the particle size of discharge materials.
04 Bearing
Heavy duty bearings can easily handle grinding process.
05 High-quality blades
Cutters adjustment is available. Shaping after blunt ensures longer life service.
06 Hydraulic
Hydraulically driven hopper opening for easy maintenance.
07 Motor Pulley
With heavy duty pulley easier for machine working.
08 Outlet
There can be connect with a screw conveyor or a belt conveyor.
09 Electric cabinet
The equipment adopts electrical components from CHINT.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Plastic crushers are designed to be robust and long lasting. However, it's very important to keep a plastic crusher properly maintained which will prevent costly repairs or parts exchanges in the future.
First and foremost, it is essential to routinely sharpen and rotate both the rotor and stationary knives. This will ensure maximum crushing efficiency, as well as putting less stress on the wear and tear of the machine.
During operation, make sure the keep foreign, stiff objects such as metals away. Commonly overlooked items such as nuts and bolts have the potential to severely damage a plastic crusher by chipping knives, damaging the rotor, and even breaking through a crushing machine's casing.
Always keep an eye on the plastic crusher screen making sure it is not clogged during operation. A clogged plastic crusher screen blocks cut pieces of plastic from exiting the grinding causing a buildup of material inside the cutting chamber which jams the rotor. A jammed rotor can lead to the premature wear of the drive belts, and in more serious cases, a burned out electric motor.
Lastly, always keep the motor and bearings well oiled.
