YOUXIN Plastic Machinery is the professional manufacturer, which is deeply on designing and producing Waste Plastic Crushing And Washing Line for more than ten years. We have rich experience in solving various problems encountered in the recycling of waste plastics, and offer the customers the suitable waste plastic crushing and washing line equipment with high yield and good quality.
Waste Plastic Crushing And Washing line is designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
| Waste Plastic Crushing And Washing line | |
| Machine | Function |
| Belt conveyor | For waste materials feeding |
| Wet Film Crusher | Cut the PP PE film into small pieces and send out into the next machine. |
| Screw conveyor | For the plastic flakes transmission |
| High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
| Floating washer | For flakes floating washing and conveying |
| Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
1. This Waste Plastic Crushing And Washing line is suit for recycling waste PP PE LDPE LLDPE films, PP woven bags, PET bottles ,PP bottles, HDPE barrels and etc.
2. The plastic washing line is high quality with advanced design, the final products are clean and dry.
3. The plastic washing line can be customized to be specially for PP/PE film,for PET bottles, for HDPE barrels and so on.
The Waste Plastic Crushing And Washing line usually include:conveyor belt---Wet film Crusher machine---Screw conveyor---Flakes Floating washing tank---Lifting conveyor---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
Waste Plastic Crushing And Washing line is widely used to washing recycling the used plastic waste.
1. Recycling PE PP bag, woven bag, non-woven bag
2. Car cover, PE ground film
3. Agricultural film
4. PE PP mulching film
5. HDPE bottles, drum, chairs and other injection waste materials
1-Belt conveyor
The belt conveyor is wide and convenient for the transportation of plastic waste bottles.
2-Plastic crusher
Divide large-size raw materials into relatively uniform small-size raw materials through crushing.
3-Screw conveyor
Convey the crushed film to the next machine.

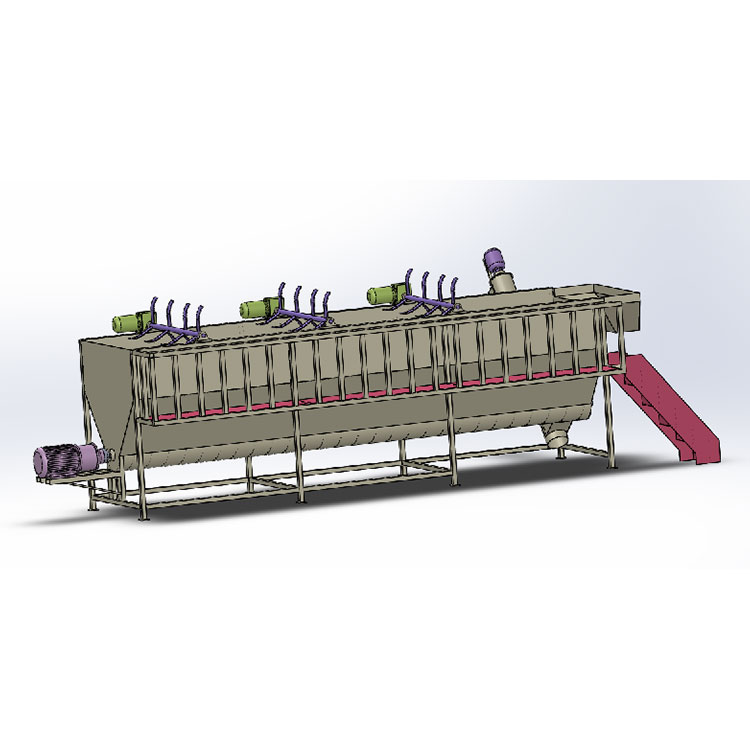

4-Floating washer
Automatically separate the sinking and floating materials
5-High speed friction washer
Remove the glue, dirty, small sand, label and other dirty through high speed friction thus the flakes against each other to make the flakes clean.

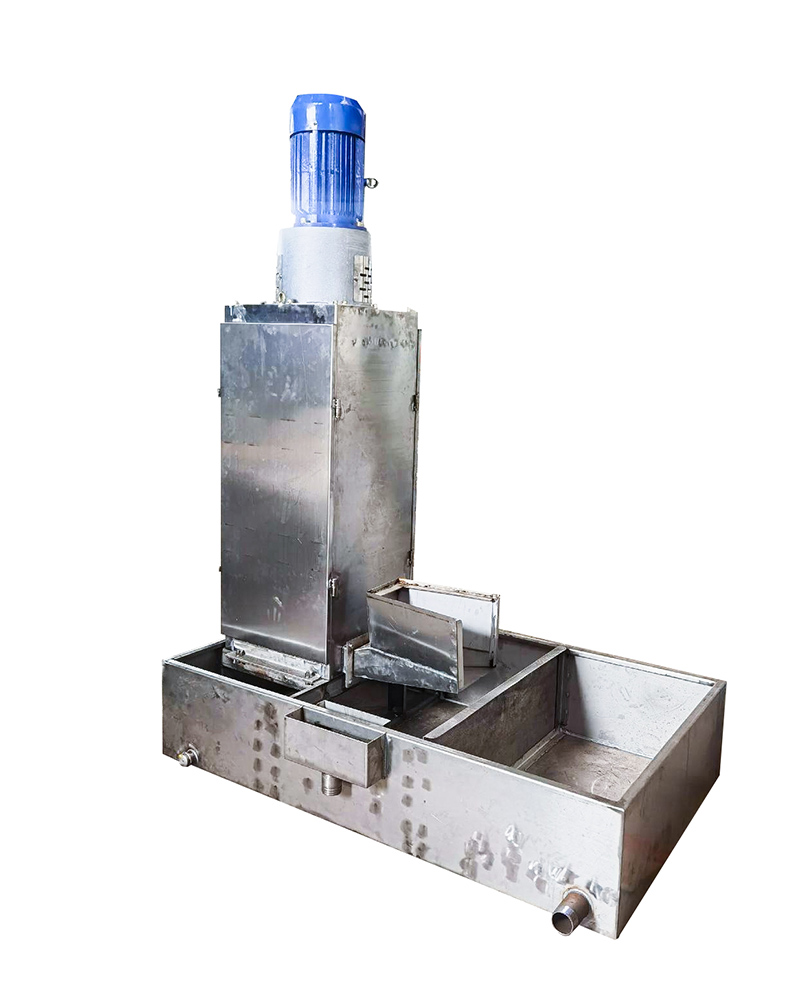

6-Dewatering machine
Dry flakes through centrifugally spinning automatic feeding and discharging one time.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
