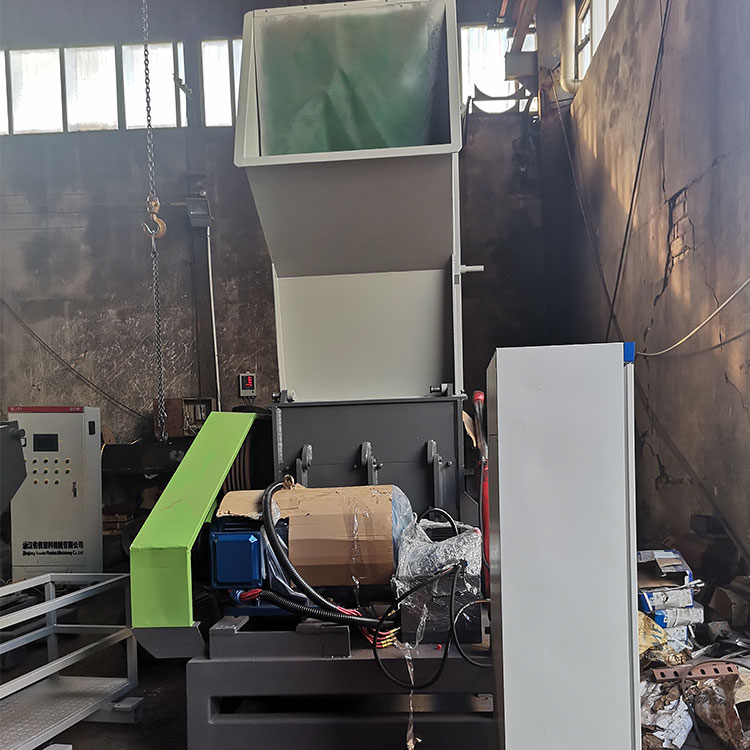

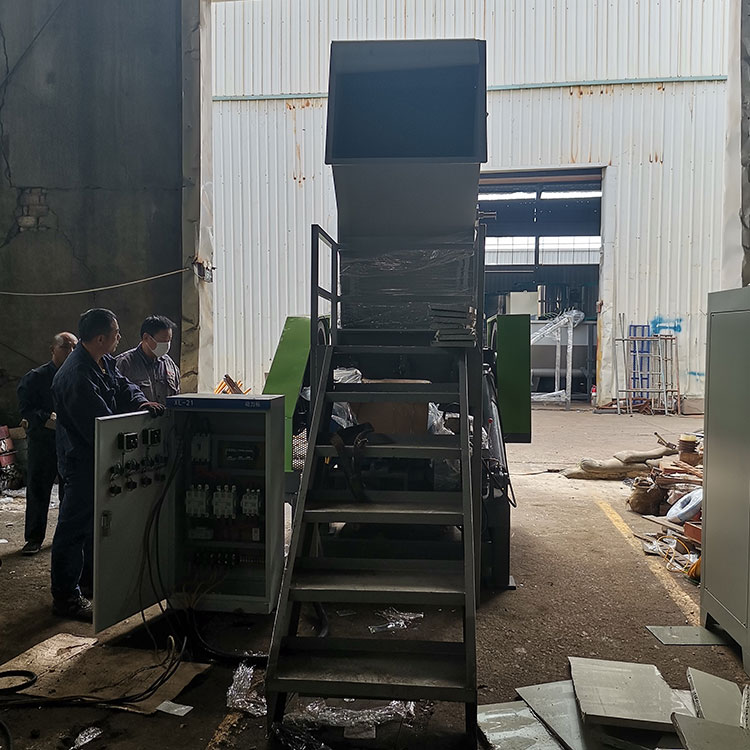

The Vertical Plastic Pallet Crusher is designed for grinding long plastic pipes and profiles. It is a kind of crushing machine used for crushing plastic profiled material(such as plastic pipe,plastic pallet,plastic tray,large hollow plastics) with large hardness and tenacity. The operation and maintenance & repair is rather simple. It is an ideal model for crushing all sorts of pipe material and profiled material.
The Vertical Plastic Pallet Crusher is designed for grinding long plastic pipes and profiles.
It is a kind of crushing machine used for crushing plastic profiled material(such as plastic pipe,plastic pallet,plastic tray,large hollow plastics) with large hardness and tenacity. The operation and maintenance & repair is rather simple. It is an ideal model for crushing all sorts of pipe material and profiled material.
| Vertical Plastic Pallet Crusher | |
| Usage Method | Reduce Plastic pallets into small size |
| Motor Power | 75KW |
| The cover opening method | manual |
| Qty of rotating blades | 9PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1200mm |
1. The plastic crusher adopts Advanced structure and drive design, strong crushing capacity
2. High and steady quality, long duration
3. Independent electrical control, over-load protection
4. The moving cutting knife stand is a step designing to make cutting force resolve and increase the cutting force times.
5. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again, its use life is very long.
Vertical Plastic Pallet Crusher is specially used for crushing hollow plastics（plastic boxes,plastic buckets,plastic barrels,plastic containers,plastic drums,plastic tank,plastic bottles,plastic pipes,plastic tubes,plastic trays,plastic pallet）.
Vertical Plastic Pallet Crusher is a versatile and efficient tool that is widely used in a number of industries and applications.
01 Rotary shaft of Vertical Plastic Pallet Crusher
The spindle rotor adopts high-strength welded steel structure with a unique shape design.
02 The bottom of Vertical Plastic Pallet Crusher
Pure copper motor output stability efficiency is higher.
The upper cabinet is hydraulic controlled ,which is convenient for machine maintenance and the replacement of blades.
03 Screen of Vertical Plastic Pallet Crusher
The size of the discharge depends on the size of the screen mesh ,and multiple specifications are available.
04 Bearing Seat of Vertical Plastic Pallet Crusher
Protective bearing covers to avoid foreign contamination entering the bearing housing.
05 High-quality blades of Vertical Plastic Pallet Crusher
The plastic crusher blade is made of excellent material which has good sharpness and abrasion resistance.
06 Outlet of Vertical Plastic Pallet Crusher
There can be connect with a screw conveyor or a belt conveyor.
07 Motor pulley of Vertical Plastic Pallet Crusher
The motor pulley is designed to provide mechanical power to the rotary shaft of the machine.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
