YOUXIN Plastic Machinery is a professional manufacturer of PP PE plastic jumbo bag granulators. These granulators are helpful and useful in waste plastic bags crushing and recycling.Our dedication to continuous improvement ensures that our plastic crushers are of excellent quality and can withstand long hours of operation. We take pride in providing reliable machines that meet the demands of the waste plastic recycling industry.

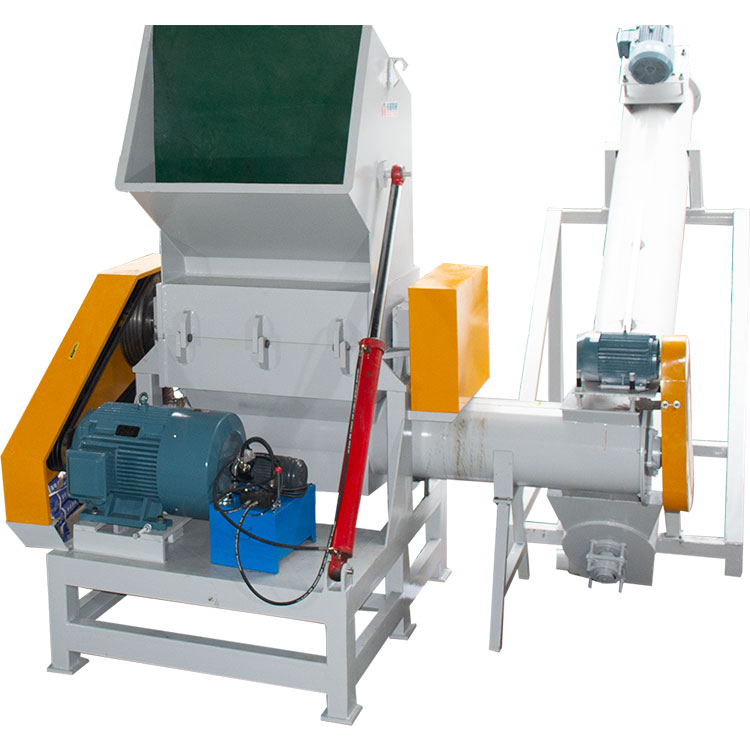

PP PE plastic jumbo bag granulator is a useful plastic crushing machine specially designed for PP or PE Jumbo bags. The blade of this crusher has a strong crushing capacity, and the specially designed knife rest structure can better crush waste plastic film, woven bags, Raffia bags, plastic bottles.
| PP PE Plastic Jumbo Bag Granulator | |
| Usage Method | Reduce Plastic bags into small size |
| Motor Power | 55KW |
| The cover opening method | Manual |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1000mm |
1. The plastic crusher adopts Advanced structure and drive design, strong crushing capacity
2. High and steady quality, long duration
3. Independent electrical control, over-load protection
4. The moving cutting knife stand is a step designing to make cutting force resolve and increase the cutting force times.
5. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again, its use life is very long.
PP PE Plastic Jumbo Bag Granulator is used for crushing soft plastics. The crushing chamber is designed specially for PP PE plastic Jumbo bags,PE woven bags,raffia bags, plastic bags,plastic greenhouse film,agricultural film, optical film,PET film, and so on.
01 Rotary spindle of PP PE plastic jumbo bag granulator
V-shaped scissor knife holder, sharp edge, easy to replace, durable.
02 Screen of PP PE plastic jumbo bag granulator
Screen mesh is made by 30mm thick steel for durable use.
03 Bearing of PP PE plastic jumbo bag granulator
Oil seal sealing system prevents material and water leakage to ensure bearing long service life.
04 High-quality blades of PP PE plastic jumbo bag granulator
The plastic crusher blade is made of excellent material which has good sharpness and abrasion resistance.
05 Outlet of PP PE plastic jumbo bag granulator
There can be connect with a screw conveyor or a belt conveyor.
06 Motor pulley of PP PE plastic jumbo bag granulator
Large diameter size belt wheel and weight wheel make the equipment run stable during the work process to ensure that the material is completely shattered.
07 Bottom of PP PE plastic jumbo bag granulator
All copper wire motor with low energy consumption, low noise, long service life.
Using the hydraulic system easily crushing chamber opening,maintenance is convenient.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Plastic crushers are designed to be robust and long lasting. However, it's very important to keep a plastic crusher properly maintained which will prevent costly repairs or parts exchanges in the future.
First and foremost, it is essential to routinely sharpen and rotate both the rotor and stationary knives. This will ensure maximum crushing efficiency, as well as putting less stress on the wear and tear of the machine.
During operation, make sure the keep foreign, stiff objects such as metals away. Commonly overlooked items such as nuts and bolts have the potential to severely damage a plastic crusher by chipping knives, damaging the rotor, and even breaking through a crushing machine's casing.
Always keep an eye on the plastic crusher screen making sure it is not clogged during operation. A clogged plastic crusher screen blocks cut pieces of plastic from exiting the grinding causing a buildup of material inside the cutting chamber which jams the rotor. A jammed rotor can lead to the premature wear of the drive belts, and in more serious cases, a burned out electric motor.
Lastly, always keep the motor and bearings well oiled.
